Product Code : KM0008-010

Product Groups : Yılmaz Redüktör

Specifications

Our planetary gearboxes have a modular design and consist of sun, planet and internal gearing. To meet the requirements of high torques in small volumes – essential in most applications today – and to cover the needs of a wide range of industry sectors the planetary gearboxes are available in many versions with a wide range of accessories. Because these gearboxes work at high torques in small spaces, they have a high power density. The thermal power value must therefore be checked according to the application. Planetary gearboxes are extensively used in mobile applications as well as in cranes, metal forming and construction machinery and wind turbines.



Specifications and Advantages Options and Accessories
  • Ten different sizes,
  • Torque range from 1000 to 50000 Nm,
  • Wide range of ratios from 3.5 to 3000,
  • Standard IEC B5 motor flanges,
  • Cooling options according to working conditions,
  • Bevel and worm stage input options,
  • Hydraulic motor options,
  • Output shaft options including splines according to DIN 5480,
  • GGG40 nodular steel housing and flanges,
  • Standard FKM sealings and synthetic oil,
  • Standard output shaft sealing cover,
  • Interior connections with spline.
  • IEC B5 Motor flanges,
  • Foot Mounting,
  • Backstop,
  • External heat exchanger and air/oil heat exchanger cooling options,
  • Temperature sensor, thermostat,
  • Oil flow sensor, oil filter,
  • Special sealings,
  • Glass oil level indicator,
  • Expansion tank,
  • Torque arm,
  • Electromagnetic and hydraulic brakes.
RV..L Series RN..L Series

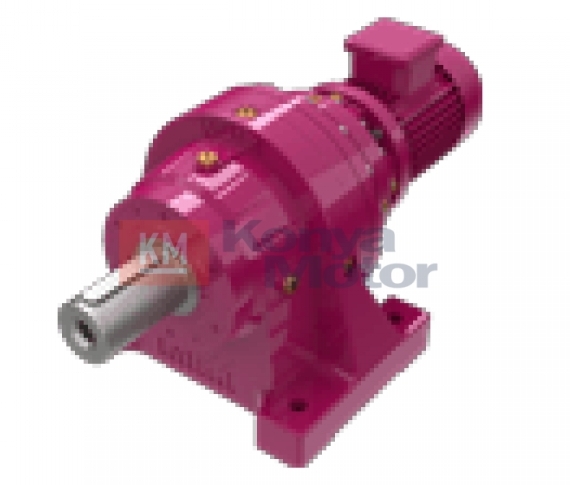

Planetary geared electric or hydraulic motors with IEC B5 or C26, M46 flanges, foot- mounted

Planetary gear units eith IEC B5 or C26, M46 flanges, foot-mounted

RT..L Series R..K Series

Planetary gear units with solid input flange, foot-mounted

Planetary geared motors and gear units with bevel stage input, foot-mounted






Gearbox Size [L Type] R11.L.. R12.L.. R15.L.. R16.L.. R19.L.. R23.L.. R24.L.. R27.L.. R29.L.. R35.L..
Ratio Range [i] 4 - 2763 4 - 2763 4 - 2858 4 - 2858 4 - 2957 3 - 2456 3 - 2456 4 - 2543 4 - 2111 4 - 2202
Nominal Torque [Nm] 1.000 2.000 3.100 5.000 8.500 12.500 20.000 25.000 35.000 50.000
Output Shaft Diameter/Length [mm] Ø50/82 Ø50/82 Ø60/105 Ø60/105 Ø80/130 Ø90/170 Ø90/170 Ø110/210 Ø120/210 Ø140/200



Gearbox Size [K Type] R11.K.. R12.K.. R15.K.. R16.K.. R19.K.. R23.K.. R24.K.. R27.K.. R29.K.. R35.K..
Ratio Range [i] 7 - 691 7 - 691 6 - 715 6 - 715 7 - 739 11 - 614 11 - 614 8 - 604 8 - 501 8 - 523
Nominal Torque [Nm] 1.000 2.000 3.100 5.000 8.500 12.500 20.000 25.000 35.000 50.000
Output Shaft Diameter/Length [mm] Ø50/82 Ø50/82 Ø60/105 Ø60/105 Ø80/130 Ø90/170 Ø90/170 Ø110/210 Ø120/210 Ø140/200
